FN Herstal is pleased to announce that its new Multi Weapon Mount has been fully MIL-STD certified and is ready for service. It joins a wide range of high-performance products in FN Herstal's Air, Land and Sea Weapon Systems catalogue. The FN® MWM will be shown for the first time at DSEI 2023 in London in two weeks’ time.
Mission success and survivability often depend on the ability to rapidly adapt to the battlefield.
The FN® MWM is a new weapon mount for ground and naval platforms. The weapon interface can be adapted in minutes to take different calibre weapons:
A tested and certified multi-calibre weapon system designed by a long-proven weapon system supplier
The FN® MWM, which was developed, tested and qualified in a collaborative project between FN Herstal and FNH UK, includes a hydraulic buffer system that ensures optimal weapon performance in all conditions and at all firing angles, while minimizing the effects of recoil on the platform and to the user. The weapon mount is fully mechanical, so it is not dependent on electrical power from the carrier. It has a range of options that includes weapon specific adaptors (for FN MAG®, FN® M240 and MK19), ballistic protection, links and cases collector and a shoulder bar.
The FN® MWM is qualified for use on wheeled or tracked vehicles, the naval variant – FN® Sea MWM – has been tested and qualified for use in extreme maritime environments.
Trouble-free integration (standard or customer specific platform connections) and fully reliable operation with FN Herstal’s renowned range of machine guns, which are in service worldwide, is guaranteed with FN mounts such as the FN® MWM.
Be ready for anything with this modular and highly adaptable multi-weapon mount – the only weapon mount certified by FN Herstal for use with FN Herstal machine guns.

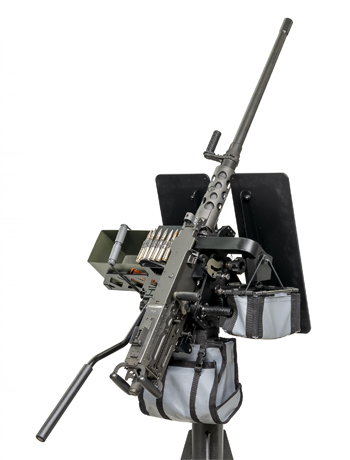

|FN® M2HB-QCB||FN MAG® 58 Infantry/FN MAG® 58M/FN® M240||MK19|
|Calibre||12.7x99mm NATO (.50 cal)||7.62x51mm NATO||40mm HV|
485 to 635 RPM
650 to 1,000 RPM
|325 to 375 RPM|
|Integration on FN® MWM||Direct fit||With adaptor
|With adaptor kit
|Weight FN® MWM + Weapon + Ammunition||Approx. 70 kg/154 lb||Approx. 48 kg/105 lb||Approx. 80 kg/176 lb|
|Ammo box capability||100 rounds||2 x 200 rounds||32 rounds|
|Elevation angles||-20°C to +55°C|
|Links and cases collector||Optional|
|Ballistic protection||Optional – from STANAG Level I to STANAG Level IV|
